Ice Cube |
SQ - 45
Daily Production
Storage bin cap.
Dimension
Compressor Unit
|
:
:
:
: |
Up to 40 kg.
04 ltrs.
H 830 x W 525 x D 500 (mm).
220v - 240v, 50Hz, 0.39 KW. |
|
|
|

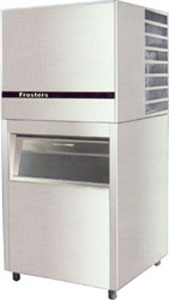

SQ - 235*
Daily Production
Storage bin cap.
Dimension
Compressor Unit |
:
:
:
: |
Up to 225 kg.
250 ltrs.
H 1460 x W 760 x D 630 (mm).
220v - 50Hz, 1.0 KW. |
Features:
- The System has no moving parts
- No Gear Motors
- Reliable Electronic Control
- S. S Water Tray Can be removed to clean/sterlise
- Space Saving Design
- Power Saving Ice Production
- Stack on Combinations
- Unique Modular Design
- Ice is made with the spray system
- Puf Insulated Stainless Steel Ice Bin
|
|
Ice Tube
Description : The Unique design of our Tube Ice Machine Freezes Ice automatically in the Vertical Stainless Steel tubes by the Refrigerant circulating around tubes in freezer shell, The Swril of water falls from the top of each tube, the hole is formed during the formation of Ice because of the falling film of water, freezing takes place inside the vertical tubes, as the water freezes the impurities are washed back to the sump tank to be released as and when required, when the Ice in the tubes is frozen to the desired thickness. Hot gas is released automatically in to the freezer Shell releasing tubes of Ice on to a cutter, the cutter cuts Ice pieces of desired preset length.
|
|
The Cylindrical Ice is available in three standard diameters 13/8", 11/8" & 7/8", Standard length is approximately 1" or can be designed to customers requirement.
Our staff strives to ensure that the Tube Ice Machines are among the strongest, with stand years of rigorous use. We are constantly working to improve efficiency, ruggedness, reliability of our tube Ice machines to keep us ahead of competition.
Our Tube Ice Machines are designed to satisfy the varying needs of different industries and customers. Our Tube Ice machine capacity varies from 1500 kg to 40,000 kgs. of Tube Ice per day, our self contained models are 1500 kg. to 5000 kg. of Tube Ice per day are operational on Ammonia & R-22 refrigerant.
We supply a perfect Ice machine no matter what's your need, if any of our many models does not suite your need we will glady work with you to custom design a model that fulfill your requirements.
Advantages:
- Highly efficiency consumes less power.
- Lesser space required for production.
- Ice Produced in batches of 20 minutes.
- Minimum Maintenance and does not require
any replacement parts for a long period.
- Investment lower than Block Ice Plant.
- Easy delivery through screw conveyers.
- Can be sold in any packed quantity for any use.
Applications:
- Sea Food Proccers
- Hotel & Bars
- Restaurants
- Fishing Industry
- Cement Mixing Plants
- Air Lines
- Flight Kitchens
- Meat Processing Plants
- Poultry Packers
- Diary Plants
- Bakeries
- Chemical Industry
- Catering Services
|
|
|
Flake Ice Machines |
Features :
Operations :
-
When drive, other components and refrigeration unit are connected, PE Ice maker starts producing continuous subcooled Ice with in few minutes.
-
Freshwater, precooled in Ice maker is pumped to the top of the machine. The water distributions system forms a uniform layer of water over the precisely machined surface. Refrigerant circulated through the jacket of the machine, absorbs heat from the water and converts it in to insant ice.
-
The cut ice, in the form of chips, is discharged from the bottom and collected in the storage room below the machine.
|
|
|
|
