Moisture !!! Use Air / Gas Dryer

Water or Moisture in the compressed air system causes air leakages, damages tools, affects processes, spoils pneuntium systems and ultimately increased cost.

Problems due to unwanted moisture in the compressed air system

  • Rust and scale deposit in steel pipes causing leakages.
  • Increased resistance to flow.
  • Malfunctioning of pressure control equipment & instrumentation.
  • Corrosion in Solenoid valves.
  • Solidification of media in pneumatic conveying systems.
  • Bubbling or orange peal effect in paint spraying.
  • sluggish operation of cylinder, Valves & other moving parts.

The results in loss of efficiency & material and increases downtime. Moisture is usually the single major cause of unnecessary costs to compressed air system. The cost of drying air is much lower than the damage. Thus clean, dry compressed air produced using air Dryer is essential for effective pneumatic system.

Compressed Air Can Be Dried By Two Methods

1. Refrigeration : removes moisture by cooloing the air.
2. Adsorption : removes moisture by passing air over desiccants.

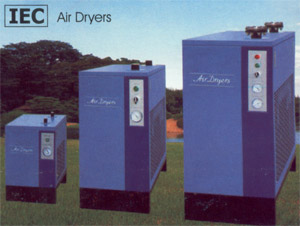

Refrigerated Type Dryer

Cooling is the simplest and most positive way of removing moisture from compressed Air. A Refrigerated Dryer has close-loop Freon circuit in which compressed fluid is chilled to a controlled temperature and so condensed moisture is separated out. To prevent freezing of condensed moisture on the refrigerant coils, Air/Gas, can be chilled to a minimum temperature of 2-3°C approx i.e. the dew point of dried fluid at operating pressure 7 Kgf/Cm²g is (+) 2°C and its corresponding atmospheric dew point would be (-) 22°C (approx). These dryers are suitable for the applications where the maximum dew point of (-) 20 to (-) 22°C (Atm). is normally acceptable.
